Product Overview

SALT-FREE WATER CONDITIONER + VOC

A water conditioner is a Salt-Free water filtration System that crystallizes magnesium and calcium minerals prevalent in hard water. These micro-crystals are unable to attach to pipes and water heaters in the form of scale. Water conditioners do not remove hardness minerals, they physically alter them and render them unable to form scale build-ups.

Traditional water softeners eliminate hardness minerals through a process called ion exchange. In an ion exchange process, ion resin beads are rinsed with a salt solution that charges each bead with a sodium ion. When the hard water flows through these beads, the sodium ions exchange with the magnesium and calcium ions. The water exiting the tank and into the house is now softened, but does contain low amounts of sodium as a byproduct of the softening process.

FEATURES & BENEFITS

Digital Valve Head Makes Regeneration Easy:

Included with your Ionfaucet water softener system is our advanced digital control head. The illuminated LCD screen allows easy visibility to track your system performance and regen cycles. Taking out the guesswork of when it's time for maintenance.

Peace of Mind Leak Free Design:

We build systems that are made to perform and last you for years. With most of our Ionfaucet water softeners having a 10+ life span. Developed using premium-grade components, Noryl valve components, and multi-layer fiberglass wrapped polyethylene tank. To provide you with the most durable system on the market.

High-Capacity Resin Gets You Results:

Ionfaucet water softener systems are pre-filled with high capacity, NSF-certified resin. Made of polystyrene DVB, its larger surface area allows for greater control and adsorption of contaminants. So that you can see and feel the difference in your water almost immediately. .

Quality Produced and Made in the USA:

To ensure consistent quality and peace of mind for the consumer all drinking water media are WQA Gold Seal or NSF certified. Cartridges are manufactured by ResinTech. Strict quality control over all aspects of production allows complete traceability of every cartridge.

SPECIFICATIONS

	Model# IONWS1SH1X1054	Model# IONWS1.25SH1X1054
Inlet/Outlet Fittings	3/4" to 1.5"NPS	3/4" to 1.5"NPS
Cycles	up to 6	up to 6
Valve Material	Noryl (1) or equivalent	Noryl (1) or equivalent
Regeneration	downflow	downflow
Flow Rate
Service @15 psi drop	102 lpm	129 gpm
Backwash @25 psi drop	102 lpm	121 gpm
Cv Servic		7.28
Cv Backwash		2.96
Minimum/Maximum	20 psi-125 psi	20 psi-125 psi
Operating Temperatures
Minimum/Maximum	40°-110° F	40°-110° F
Meter
Accuracy	.± 5%	.± 5%
Flow Rate Range	0.95 - 102 gpm	0.25 - 30 gpm
Gallon Range	0.02 - 5,700 m3	20 - 1,500,000 gallons
Totalizer	0.001 - 9,999,000 m3	1000 - 9,999,000 gallons
Dimensions & Weight
Distributor Pilot	1.050" OD Pipe (3/4" NPS)	1.050" OD Pipe (3/4" NPS)
Drain Line	3/4" or 1" NPT	3/4" or 1" NPT
Brine Line	3/8" OR 1/2" OD Poly Tube	3/8" OR 1/2" OD Poly Tube
Mounting Base	2 1/2" - 8 NPSM	2 1/2" - 8 NPSM
Electrical Specifications
Supply Voltage	120V AC	120V AC
Supply Frequency	60 Hz	60 Hz
Output Voltage	12V AC	12V AC
Output Current	500 mA	500 mA
Tank Applications
Water Softener	6" - 21" Diameter	6" - 21" Diameter
Water Filter (2)	6" - 16" Diameter	6" - 16" Diameter

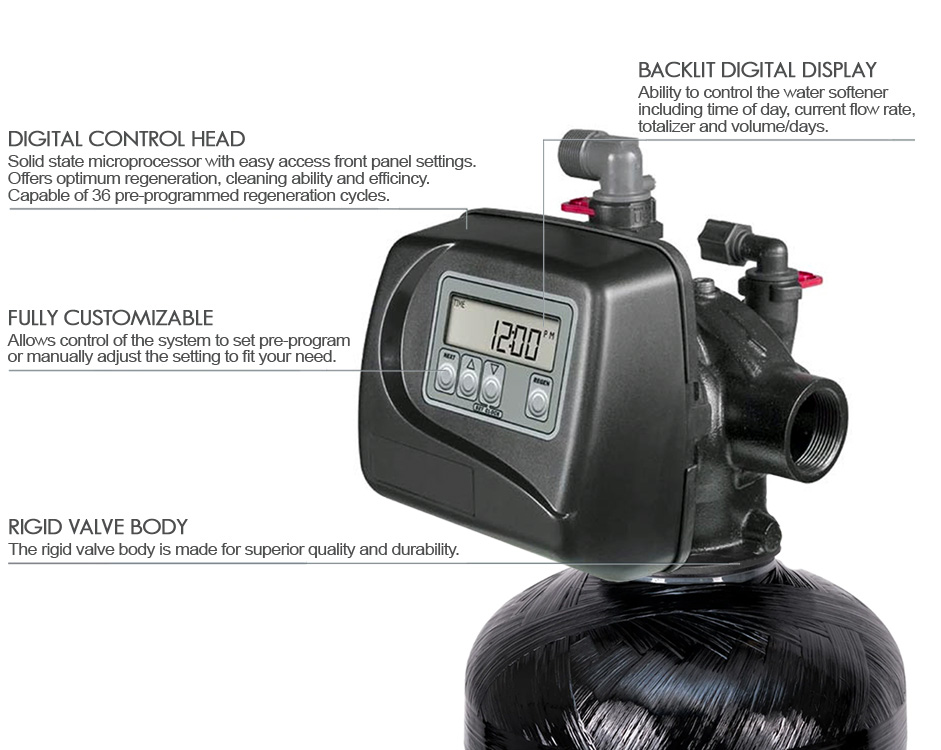

VALVE SPECIFICATIONS

THE CONTROL VALVE MAKES ALL THE DIFFERENCE

We use Clack control valves, due to their reputation for quality, reliability, overall efficiency and performance. The valve is an important part of the system because it controls and evaluates water usage, flow, and sets the reserve capacity requirement for each individual household. The valve will determine when the system will recharge, how much salt, and water to use to accomplish a full regeneration cycle.

Superior valves like our Clack valves have an extra backwash cycle after the brine draw cycle. The 2nd backwash option provides a better stratified and evenly distributed resin bed for more effective contact time with the water flowing over it.
